NOTE: The spring preload is recommended to be around 10mm; excessive preload will lead to spring deformation, resulting in the spring side wear phenomenon.

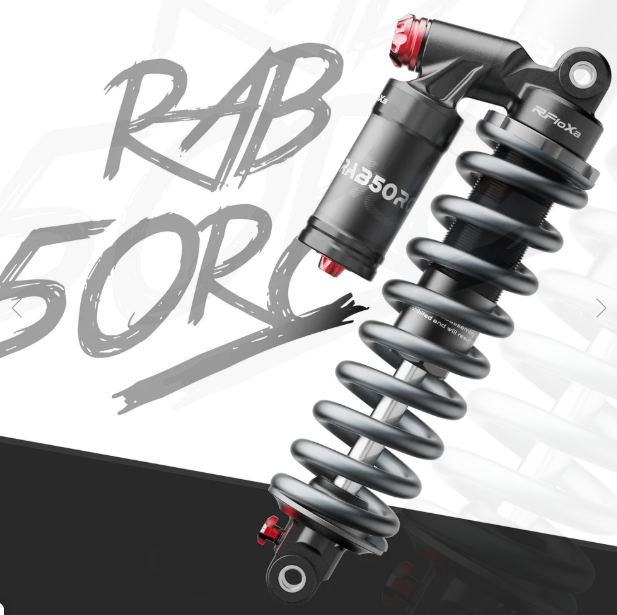

① Advanced Technology - The RAB50RC rear shock absorber features an oil-gas separation damping structure with an external nitrogen reservoir, providing exceptional shock absorption. Enjoy the smoothest rides, even on the roughest terrains.

② Versatile Use - This high-performance rear shock absorber is perfect for tackling various challenging road conditions and is ideal for E-BIKES, bicycles, and off-road electric bikes. Multiple specifications are available, and if your bike’s requirements are not listed, feel free to contact us for customization.

③ Unmatched Durability - Constructed from aerospace-grade AL6061-T6 aluminum alloy, the RAB50RC is designed to resist oxidation and enhance strength. It’s robust enough to handle all the demanding maneuvers you aspire to perform.

④ Comprehensive Adjustability - The rear suspension is equipped with rebound and compression damping adjustment knobs, allowing you to fine-tune your ride based on personal preferences. The spring hardness is adjustable via the toothed disk at the top of the spring—turn it down for a firmer feel or up for a softer response. Inflate the cylinder gas through the bottom valve for additional customization.

⑤ Reliable Warranty - We offer a one-year warranty service. Should any quality issues arise, please contact us for a replacement. We have full confidence in the RAB50RC’s performance, making it a highly cost-effective rear suspension option. Ensure to measure your bike’s rear suspension requirements accurately and select the appropriate size.

Features:

• External Nitrogen Reservoir
• Oil-Gas Separation Damping Structure
• Multi-stage Rebound Damping Adjustment
• Multi-stage Compression Damping Adjustment
• AL6061-T6 Forged Upper Mount
• AL6061-T6 Aluminum Alloy Main Tube
• 42CRMO Main Shaft
• 55CRSI Spring Wire
• C-ring Retainer Spring Base for Stability During Riding
• Easy-to-remove Spring Design
• Fine and Smooth Rebound and Compression Damping Adjustment, with noticeable feedback at each stage
• Rubber Bladder in the Air Chamber for Reduced Heat Fading of Damping and Enhanced Shock Absorption for Small Bumps

Fitment Bike:

• Talaria MX3 / MX4 / XXX / MX5
• Altis Sigma
• E-Ride Pro S / SS 1.0/2.0/3.0  SR
• SurRon LBX, LBS, L1E

• Segway X-260 / X-160

• Rawrr Mantis
• 79 Bike Falcon M
• Ventus One
• RFN Apollo
• Rerode R1
